Round Shape LED Bulkhead Light Side Emitting Design With Microwave Sensor
Quick Details
- Power:20W / 30W / 40W
- CRI:Ra>80
- Power Factor:PF>0.9
- Light Size:Φ275 x H85mm
- Warranty:Three years
Specification
| Model No. | AL-BKL20W-R01 AL-BKL30W-R01 AL-BKL40W-R01 |
| Input Voltage | AC85-265V,50-60Hz |
| Power | 20W / 30W /40W |
| Power Factor | >0.9 |
| Light Shape | Round |
| Dimension | Φ275 x H85mm |
| Color Temperature | 2700K ~ 6500K |
| LED Chip | High Bright 2835SMD LED |
| LED Qty | 120pcs |
| CRI | Ra>80 |
| Beam Angle | 180° |
| Operation Temperature | -40℃ ~ 55℃ |
| Sensor Type | Microwave Senson |
| Dimmable | NO |
| IP Grade | IP65 |
| Lifetime | 50000Hrs |
| Material | Aluminum + PC |
| Housing Color | White / Black / Grey |
| Carton Package Dimension | 5pcs/CTN |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Model Information
| Model No. | Power | Microwave Senson | Emergency | Lumen |
| AL-BKL20W-R01 | 20W | NO | NO | 1600lm |
| AL-BKL30W-R01 | 30W | NO | NO | 2400lm |
| AL-BKL40W-R01 | 40W | NO | NO | 3200lm |
| AL-BKL20WS-R01 | 20W | YES | NO | 1600lm |
| AL-BKL30WS-R01 | 30W | YES | NO | 2400lm |
| AL-BKL40WS-R01 | 40W | YES | NO | 3200lm |
| AL-BKL20WE-R01 | 20W | NO | Yes | 1600lm |
| AL-BKL30WE-R01 | 30W | NO | Yes | 2400lm |
| AL-BKL40WE-R01 | 40W | NO | Yes | 3200lm |
Packing & Shipping
Packing details:Normal inner box then exported outer carton
If request color box avaliable,accept customized.
5pcs/CTN,51x34x35CM,
Actual Weight:10.6KG.Volume weight:13.5KG
Delivery details:Sample order 3-4days
Bulk order 7-12days.
Competitive Advantage
- Die-casting aluminum lamp body, excellent heat dissipation.
- IP65 waterproof, dustproof for indoor and outdoor lighting.
- Milky white PC cover, high impact resistance, IK10 approval .
- Stainless steel hexagon socket head cap screws.
- Can be installed with a motion sensor.
- Available for emergency function, 90minutes or 3 hours.
- Black / white / grey aluminum housing color available.
- Energy saving, not emitting UV and IR, no RF interference
Product Other Option
- Emergency:8W lighting,3 hours after power off.
- Microwave sensor:When object move to the sensor area,the lamp lighting.
When object move out the serson area,the lamp out.
- Emergency & Microwave senson:More engergy saving and smart.
Application
Home or office lighting.
Bathroom, Kitchen, Spa room,
Hotel hall or room lighting.
Shopping mall lighting.
Under cabinet lighting.
Display case lighting.
Artwork lighting.
Board lighting, Garden lighting,
Accent lighting,
Cabinet and under counter lighting.

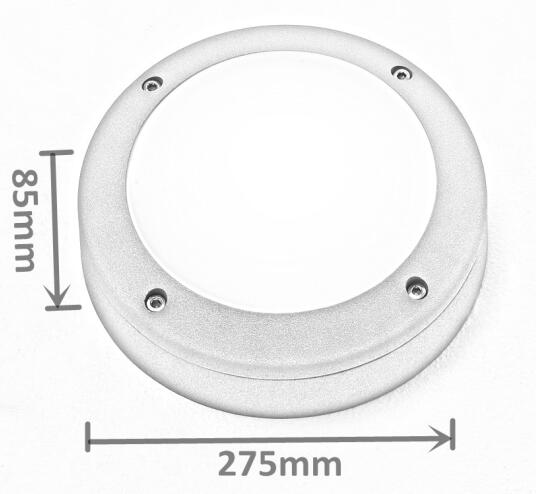

Dimension

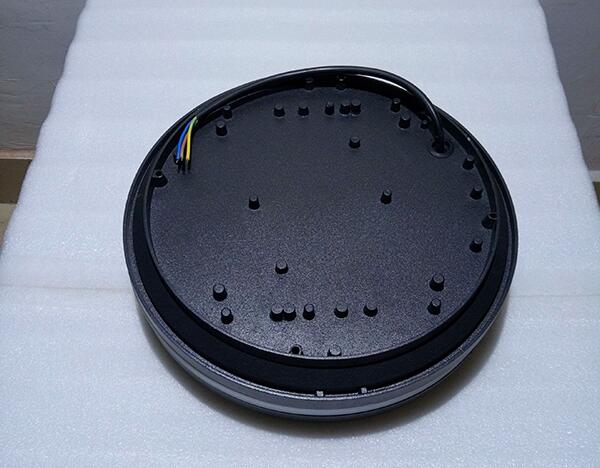

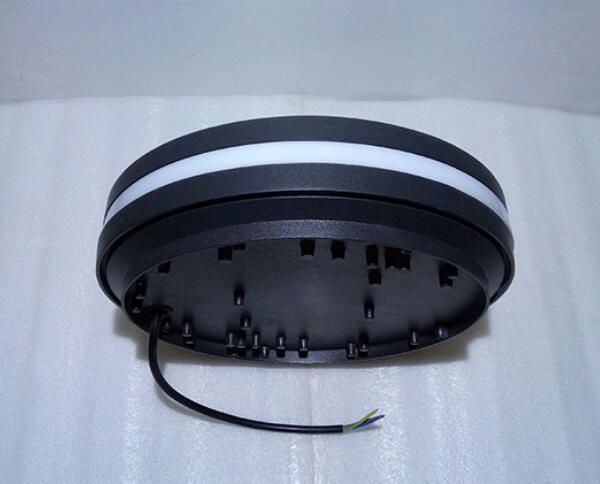

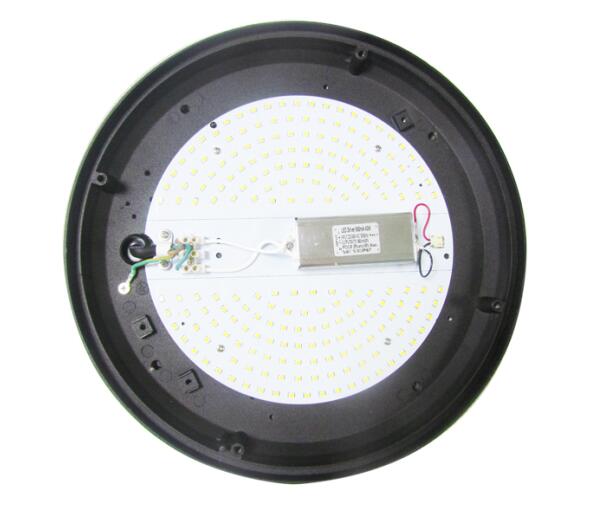

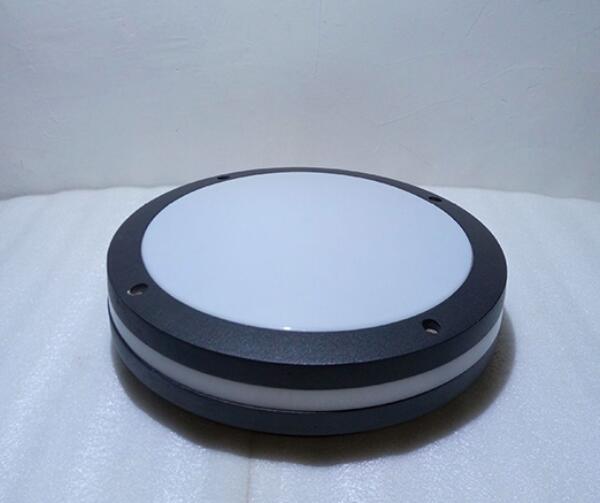

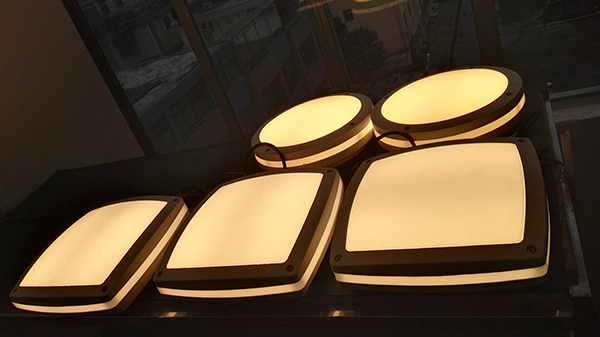

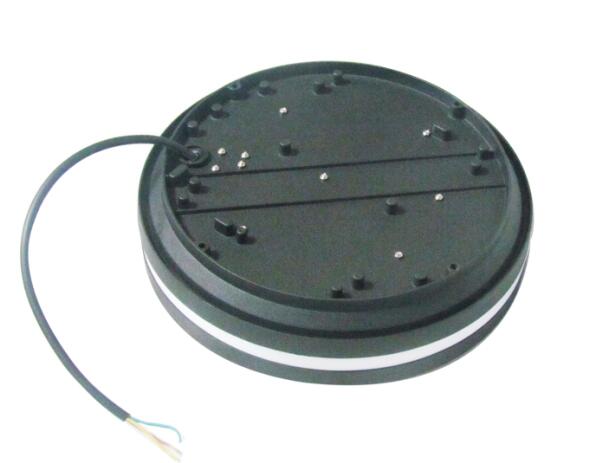

Photo Show

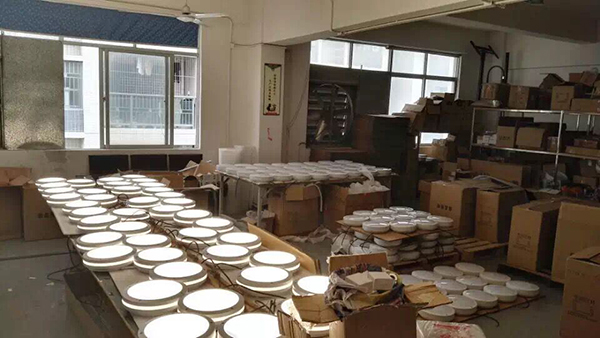

Production Aging-test
