1Pcs Cree LED 8W 15W Underground Lights With Dali Triac Dimmable 4000K 5000K
Description
This is a COB LED underground lights,use 316 stainless steel front cover,never rust.8W and 15W power optional.
3000K 4000K 5000K warm white/natural white/white color for choosing.
Front and square shape front cover,meet different lighting projects design.
The light can be 24VDC safe voltage and 120V 240V high voltage.
IP67 waterproof,widely used in gardens,lawns,squares...
Technical Datas
| Model No. | AL-2CDO |
| Input Voltage | 24V,120V,240V |
| Power | 8W;15W |
| Light Size | Φ116mm x H73m |
| Sleeve Size | Φ110mm x H118m |
| Color | Warm White/Natural White/White |
| Color Temperature | 3000K 4000K 5000K |
| LED Chip | CREE 8W/15W COB LED |
| LED Qty | 1pcs |
| Beam Angle | 12°/24°/38°/60° |
| Dimmable | YES |
| IP Grade | IP67 |
| Weight | 1.14Kg |
| Front Cover | 304 / 316 Stainless Steel |
| Housing | Die-casting aluminum |
| Sleeve | PVC |
| Carton Package Dimension | 27 x 27 x 29CM/8pcs |
| Carton Package Weight | 7Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Material & Manufacturing Technique
Housing:12# Die-casting grey powder coated aluminum
Front cover:stainless steel sus316#.
Lens:Asymmetrical and symmetrical optical lens,efficiency≥85%
Gasket:Molding shaped silicone seal
Glass:Step tempered galss,T=8mm
Cable gland:IP68 PG-9 copper with nickel-coated.
LED:Cree COB LED
Loading capacity:Exert force area of Φ10=1330Kgs, Φ30=1840Kgs
Applicaation environment: -20℃-40℃
Power cable:24VDC low voltage:
H05RN-F 2x1.0mm² L=0.5M
Main voltage:
H05RN-F 3x1.0mm² L=0.5M
RGB 24VDC
H05RN-F 4x0.75mm² L=0.5M
Mounting Sleeve:PVC
Color Temperature & Color
Dimmable Support
Item No. Information
| Model No. | Colors | Voltage | Beam Angle | Power |
| AL-2CDO08 | 3000K 4000K 5000K | 12/24VDC 120/240V | 12/24/38/60° | 1 x 8W |
| AL-2CDO15 | 3000K 4000K 5000K | 12/24VDC 120/240V | 12/24/38/60° | 1 x 15W |
Product Advantage
- 316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
- 1pcs 8W 15W COB LED as light source,high lumen,long lifetime and beautiful lighting effect.
- Low voltage 12V 24V,high voltage 120V-240V optional.

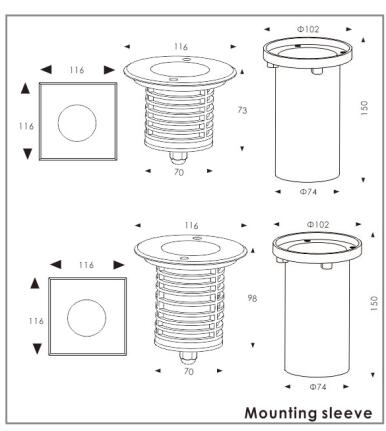

Dimension
Photoes

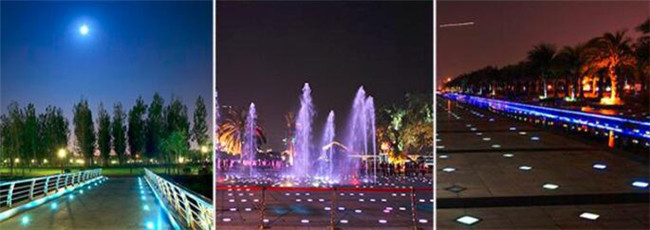

Application
Tag:
LED underground light,LED inground lights,LED step light,LED stair light,LED lawn light,LED tree light
