8 X 16mm 12V 24V Flexible LED Strip Light / CE RoHS LED Neon Flex Rope Light


8 x 16mm LED Silicone Neon Flex Strips With 12V 24V Voltage Lemon Yellow Color


Quick Details

• Power:8.5W/m
• Voltage:12/24VDC
• Size:8x16mm,6x12mm
• IP Rating:IP67
• LED Type:2835SMD LED
• LED Qty:120pcs/m
• Material:Silicone
• Cuting Length:2.5CM
• Packing Length:50m/reel
• CRI:Ra80
• Beam Angle:120°
• Warranty:2 years



Description




Model Information


Colors Optional

• White/Warm White/Cool White
• Red/Pink
• Green
• Blue/Ice Blue
• Lemon Yellow/Golden Yellow
• Orange
• Violet

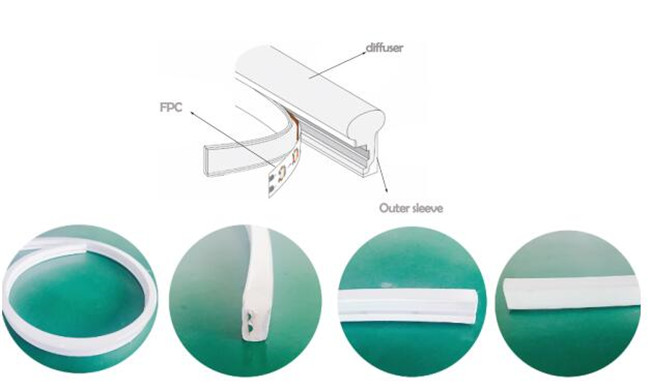

Product Structure

Products Features

• Light source:High luminous efficiency,SMD2835 LM80 proved.
• Process & Material:High light transmittance,food-grade environmental silicone material,integrated extrusion molding technology,IP67.
• Optical Design: Unique optical light distribution structure design,uniform lighting surface and no shadow.
• Appearance Design: Compared with the traditional neon tube or PVC guardrail tube, the silicone material has good flexibility, the simple and stylish appearance, which is exquisite and unique.
• Product Certification: CE,ROHS.
• Environmental Features: Resistance to saline solutions, acids&alkali,corrosive gases and UV.
• Working/Storage Temperature:Ta:-35~60℃ /0℃～60℃.
• Life Span: 30000H,2years warranty.



Installation Warm Tips

1. Cut the neon lights according to your length requirements(has sign mark in the side).
2. You can choosed our 1meter length aluminum mounting profiles to install as linear lighting.
3. We also have 50CM length PVC and aluminum clip,you can install them bend 90° 180° angle ato make shape you designed.
4. Transparent end plug can help to finish the waterproof function.
5. Power cable also very convenient for the connection.



Precautions

• Use a 12V&24VDC isolated power supply to drive the neon lamp strip and the ripple wave of constant voltage source shall be less than 5%. It is not allowed to use RC voltage reduction or non-isolated power supply to drive the neon lamp strip.
• In actual applications, 20% of the power supply shall be kept (only 80% of the power is used) to
  guarantee that sufficient voltage is available to drive the product.
• Attention shall be paid to safe operation. After powering on,it is not allowed to touch the AC power
  supply to avoid an electric shock.
• Attention shall be paid to the positive and negative poles of the wires during
  installation and whether the power supply conforms to required voltages to avoid damages.
• Avoid scratching, distortion and irregular bending of the product during installation;otherwise it may
  cause irreparable damage to the product.
• Please do not bend the strip into an arc with a radius less than 60mm to ensure the longevity and
  reliability, the bending radius too small will damage the product itself.
• If the actual length of application exceeds the specified using length, it will lead to overload heating
  and uneven brightness.
• To keep the eyes from being harmed, try to avoid staring at the glowing side of the LED strip for a
  long time.
• Non-professionals are prohibited from installing, disassembling and repairing the product.
• Do not use any acid or alkaline adhesive to fix products (including not limitedto glass cement,etc.)
• Product is not suitable for use in swimming pools and fountains.

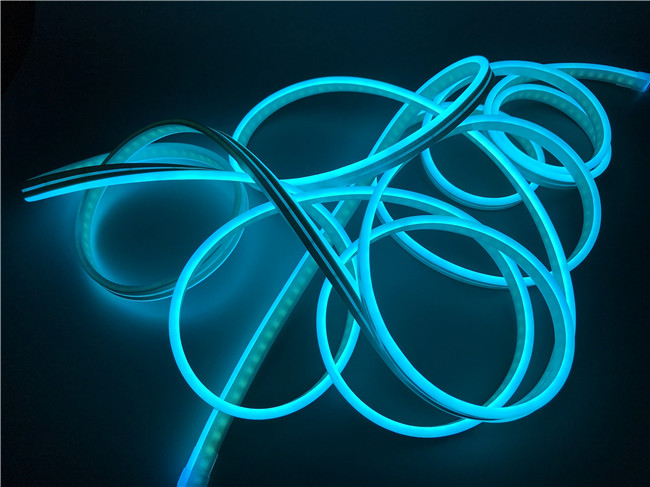

Detailed Photoes

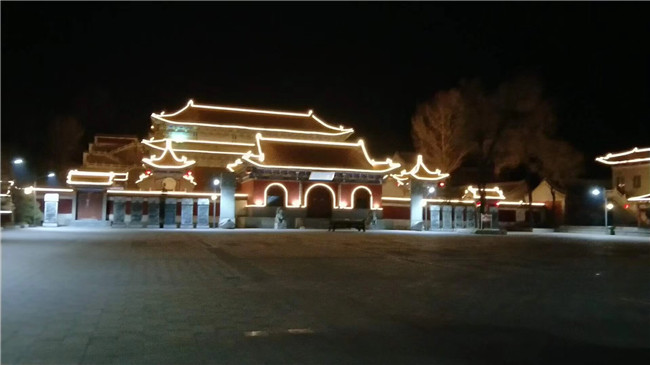

Application

1. Path & contour marking
2. Elegant interior decoration
3. Landscape outlines
4. Backlighting for larger size ad-signs
5. Car & motorcycle decorative lighting
6. Signal lighting
7. Architectural decorative lighting
