DALI TRIAC Dimmable IP66 CREE LED Outdoor Spotlight

Adjustable IP66 LED Outdoor Spotlight Projector With RGBW 4in1 DMX512 DALI TRAIC Dimmable

Quick Details

• Power: 10W-96W
• Voltage: DC12V,DC24V,AC100 - 240V
• Beam Angle: 18/24/38/60°  6/12/25 /40/60°
• Color:Single color/RGB 3in1 DMX512/RGBW 4in1 DMX512
• IP Grade: IP66
• Material: Die-casting aluminum

Product Overview

The 3V series led garden spotlight is an adjustable outdoor spotlight with various of mouting accessories to meet diffrent moutning requirements.

It has high-efficieny CREE COB LED or high power LED providing high lumen output in beam angle of 6/12/25 /40/60° and 18/24/38/60° for uplighting trees and focal points.

We designed it with 6 different mounting accessories including:mounting base,spikes,poles,tree loops,pole mounting plate and surface mounting ceiling base.You can adust the lighting direction angle by 100 degree.

It can be single color,RGB 3in1 DMX512 and RGBW 4in1 DMX512,DALI,PWM,0-10V,TRIAC dimmable and controllable which make it easy to connec and control.

We choose every single component based on at least 5 years warranty.It's stable quality and excellent lighting effect and performance will help you win more market with good fame and profit.

Parameters

Tope Quality Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Gasket:Tooling shaped seal

Glass:Step tempered galss

LED:CREE high power /CREE COB LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output,ACTEC brand

Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:24V:L=0.5M H05RN-F 2x1.0m²

                    100/240V:L=0.5M H05RN-F 3x0.75m²

                     RGB 3in1 DMX512/RGBW 4in1 DMX512 L=0.5M 5x0.75m²

Spike:Auminum

Mounting base:Auminum

Tree-loop:Die-casting aluminum

Pole mounting base:Die-casting aluminum

Model No. Information

High power LED type

COB LED type

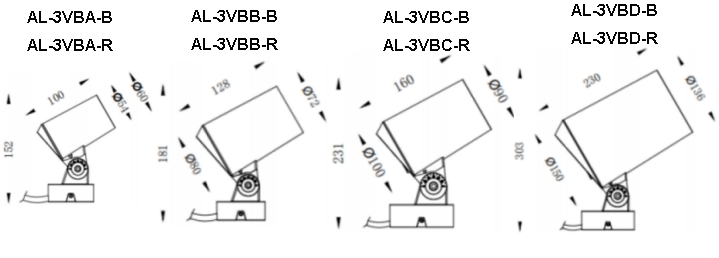

Dimension

Product Features

• Various colors optional:single color,RGB 3in1 DMX512,RGBW 4in1 DMX512 meet different lighting projects requirements.
• DAL,PWM,0-10V,TRIAC four ways dimmable.
• 6 different mounting accessories meet different intallation requirements.
• Excellent structural heat dissipation,8W to 50W high power.
• CREE led light source,high lumen output and long lifetime.
• 5 years warranty compenents and material,safe and durable.
• Professional lighting control accessories meet different lighting effect requirements.
• Lighting direction adjustable.

Photoes

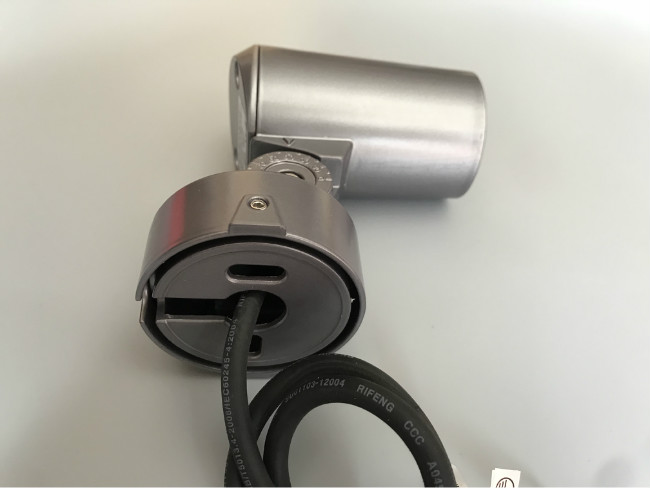

Mounting base

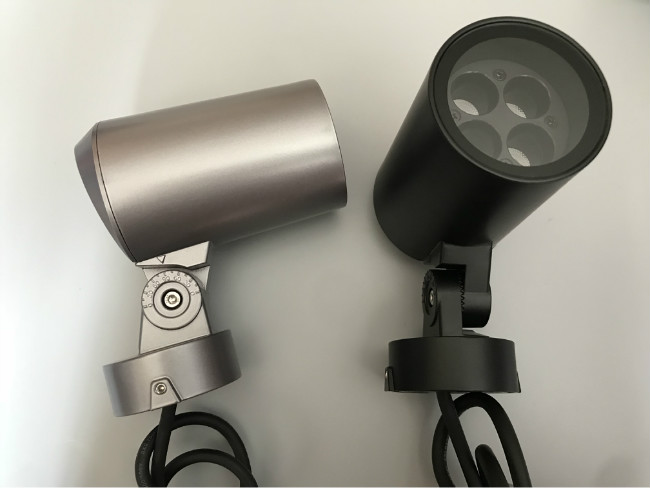

Grey and black housing color

Spike accessories

Perfect strong packing

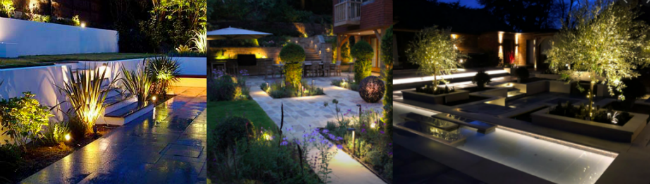

Application

1)Garden/backyard lighting

2)Accent lighting

3)Building lighting

4)Facade lighting

5)Road lighting
