Aluminum LED Garden Spotlight With Round Base Die Casting Aluminum Material

A.L Lighting Limited
Contact Now

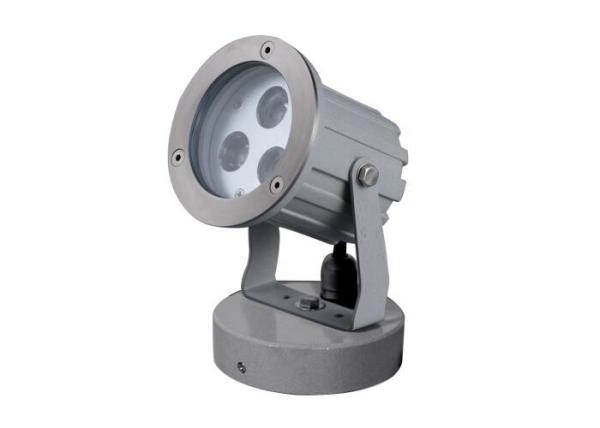

Aluminum LED Garden Spotlight With Round Base Die Casting Aluminum Material

  • 1
  • 2
  • 3

Brand Name : A.L

Model Number : AL-3FD

Certification : CE,RoHS

Place of Origin : Guangdong,China

MOQ : 5pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 2,000pcs per day

Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays

Packaging Details : 8pcs/CTN (27x27x42CM),Weight 7.5Kg

Power : 3W,9W

LED Type : 1W/3W CREE high power LED

Beam Angle : 15°/30°/60°

Input : 12V;24V;220V

IP Grade : IP65

Material : Die-casting aluminum

Contact Now



Aluminum LED Garden Spotlight With Round Base Die Casting Aluminum Material





Quick Details



  • Power:3x1W,3x3W
  • Voltage:DC12-24V,AC110V,AC220V
  • IP Rate:IP65
  • Material:Aluminum die-casting



Technical Datas



Model No. AL-3FD
Input Voltage 12V/24V,220V
Power 1W;3W
Dimension Φ96mm x H87m
Lamp Height(Base Include) 298mm
Color R/G/B/Y/RGB 3in1/Amber/W/CW/WW
Color Temperature 2700K~6500K
LED Chip CREE 1W/3W high power LED
LED Qty 3pcs
Beam Angle 15°//30°/60°
Dimmable YES
IP Grade IP65
Housing Material Die-casting aluminum
Front Cover 304 & 316 Stainless Steel
Weight 0.8Kg
Certification CE,RoHS
Warranty 2 & 3years
Packing Details
Carton Package Dimension 27*27*42CM/8pcs
Carton Package Weight 7.5Kg
Carton Package Qty 8pcs





Model Information



Model No. Color Power
AL-3FD01 Red/Green/Blue/Yellow/White/WW/CW 3 x 1W
AL-3FD02 Red/Green/Blue/Yellow/White/WW/CW 3 x 3W
AL-3FD03 RGB 3 x 1W
AL-3FD04 RGB 3 x 3W
AL-3FD05 RGB 3in1 3 x 3W





Material & Manufacturing Technique



Housing:12# Die-casting grey powder coated aluminum

Front Cover:316 & 304 Stainless Steel

Bracket:Powder coated aluminum

Glass:Step tempered galss,T=4mm

Reflector:Optical reflector ,efficiency≥90%

Cable gland:IP68 PG-9 PVC

LED:High power LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

           Single color LED=2-circuit output

           RGB 3in1 LED=6-circuit output

Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:24V:L=2.0M H05RN-F 2x1.0m²

                    100/240V:L=2.0M H05RN-F 3x0.75m²

Mounting Base:12# Die-casting grey powder coated aluminum





Comtetitive Advantage



1) Die-casting grey powder coated aluminum housing and 304 & 316 stainless steel front cover,

    goodheat-dissipation,rustproof,meet different rigorous installation environment.

2) Osram & Cree high power LED,R/G/B/Y/W/WW/RGB/RGB 3in1 color optional.Meet diversified color

    changing for landscape lighting projects.

3) 15°/30°/60° beam angle optional,meet different lighting design.

4) 12V,24V,220V optional,with round base,convient installation.

5) 10 years manufacturing & exporting experience,good quality control and good after-sales service.

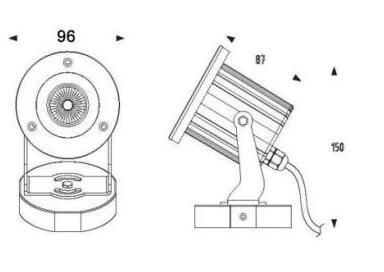

Dimension



Aluminum LED Garden Spotlight With Round Base Die Casting Aluminum Material

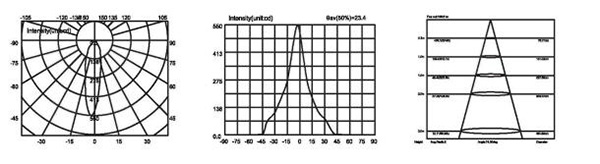

Graphical Representation



Aluminum LED Garden Spotlight With Round Base Die Casting Aluminum Material

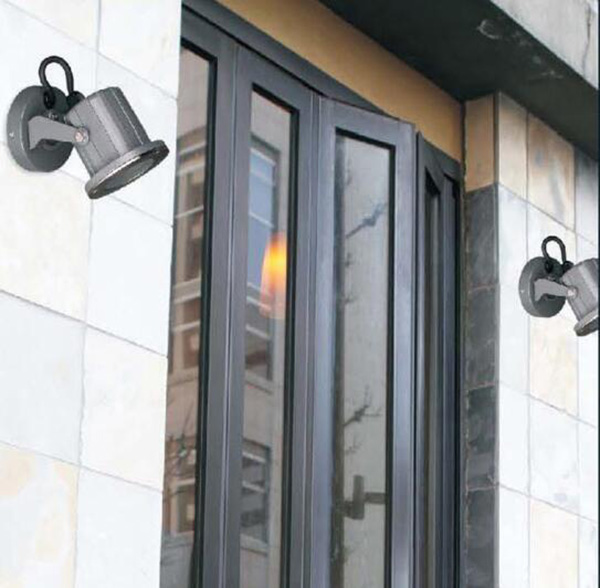

Installation



Aluminum LED Garden Spotlight With Round Base Die Casting Aluminum Material

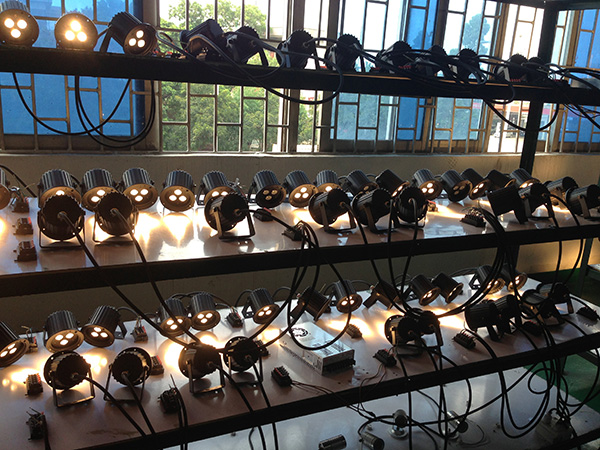

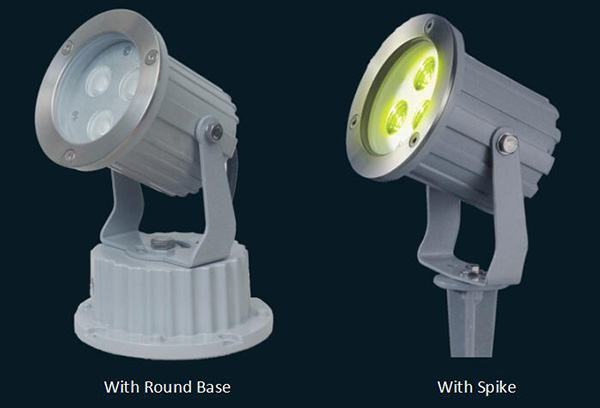

Photo Show



Aluminum LED Garden Spotlight With Round Base Die Casting Aluminum Material



Aluminum LED Garden Spotlight With Round Base Die Casting Aluminum Material





Warm Tips



  • Lamp housing color is avaliable for painting to any color you need.
  • The lamp is avaliable for many colors,pls confirm which color you like before you place order.
  • RGB and RGB 3in1 is not avaliable for high voltage.
  • This lamp is IP65,if you looking for IP68 or IP67 high IP rate pls move to our underwater lights and underground light series.
