RGB LED Outdoor Landscape Lighting With PVC Spike 3W 9W 220V 0.8Kg Weight
Quick Details
- Power:3x1W,3x3W
- Voltage:DC12V,DC24V,AC110V,AC220V
- Color:R/G/B/Y/W/CW/WW/RGB/RGB 3in1
- LED type:High power LED
- Installation accessories:Die-casting/PVC spike
Product Parameters
| Model No. | AL-3FS |
| Input Voltage | 12V/24V,220V |
| Power | 1W;3W |
| Dimension | D42mm x H75m |
| Color | R/G/B/Y/RGB 3in1/Amber/W/CW/WW |
| Color Temperature | 2700K~6500K |
| LED Chip | CREE 1W/3W high power LED |
| LED Qty | 1pcs |
| Beam Angle | 15°/25°/30°/45°/60° |
| Dimmable | YES |
| IP Grade | IP65 |
| Housing Material | Die-casting aluminum |
| Front Cover | 304 & 316 Stainless Steel |
| Weight | 0.8Kg |
| Certification | CE,RoHS |
| Warranty | 2 & 3years |
| Packing Details |
| Carton Package Dimension | 25*24*46CM/8pcs |
| Carton Package Weight | 6.5Kg |
| Carton Package Qty | 8pcs |
Model Information
| Model No. | Color | Power |
| AL-3FS0302 | Red/Green/Blue/Yellow/White/WW/CW | 3 x 1W |
| AL-3FS0305 | RGB 3in1 | 3 x 3W |
| AL-3FSGU10 | / | GU10 |
Material & Manufacturing Technique
Housing:12# Die-casting grey powder coated aluminum
Front Cover:316 & 304 Stainless Steel
Bracket:Powder coated aluminum
Glass:Step tempered galss,T=4mm
Reflector:Optical reflector ,efficiency≥90%
Cable gland:IP68 PG-9 PVC
LED:High power LED
PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
Driver:Constant current output
Single color LED=2-circuit output
RGB 3in1 LED=6-circuit output
Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth
Power cable:24V:L=2.0M H05RN-F 2x1.0m²
100/240V:L=2.0M H05RN-F 3x0.75m²
Spike:PVC
Comtetitive Advantage
1) Die-casting grey powder coated aluminum housing and 304 & 316 stainless steel front cover,
goodheat-dissipation,rustproof,meet different rigorous installation environment.
2) Osram & Cree high power LED,R/G/B/Y/W/WW/RGB/RGB 3in1 color optional.Meet diversified color
changing for landscape lighting projects.
3) 15°/30°/60° beam angle optional,meet different lighting design.
4) 12V,24V,220V optional,with spike,convient installation.
5) 10 years manufacturing & exporting experience,good quality control and good after-sales service.
Dimension
Graphical Representation

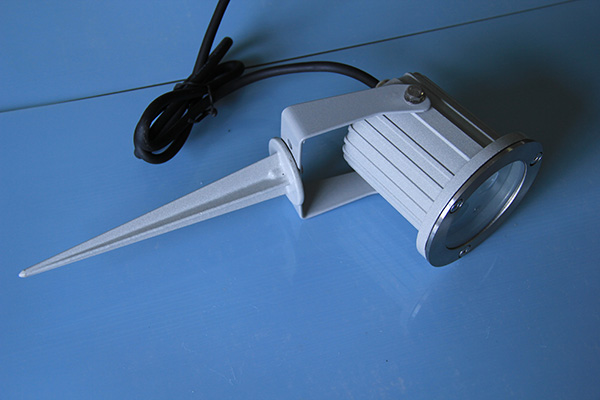

Outdoor 3W 9W RGB 220V AluminumLED Garden Spotlight with Spike Photo Show

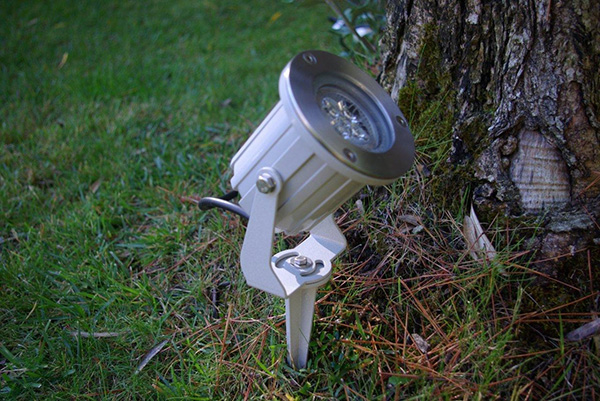

Application Scene
