IP65 Waterproof LED Landscape Spotlight With Rgb 3in1 Color Dali Dimmable Support
Quick Details
- Power: 2W,3W
- Voltage: DC12V,DC24V,AC100 - 240V
- Beam Angle: 15°/25°/30°/45°/60°
- Color:Single Color/RGB 3in1
- IP Grade: IP65
- Material: Die-casting aluminum+glass
- LED Qty:1pcs
- LED Type:High power LED
- LED Brand:CREE/OSRAM.EPISTAR
- Warranty:2 years
Description
High power LED Garden Spotlight can install in-ground for decoration or illumination. It is widely used for garden, theme park, etc. single color (pure white, warm white, red, green, blue, yellow) and RGB 3in1 color available. Aluminum anodized housing . IP65, built-in constant current driver, input voltage 24V DC, low consumption and safe for human, bracket parts included , easy to install.
AC110V,220V also avaliable.
Parameters
| Model No. | AL-3A |
| Input Voltage | 12V/24V,220V |
| Power | 1W;3W |
| Dimension | D42mm x H75m |
| Color | R/G/B/Y/RGB 3in1/Amber/W/CW/WW |
| Color Temperature | 2700K~6500K |
| LED Chip | OSRAM 1W/3W high power LED |
| LED Qty | 1pcs |
| Beam Angle | 15°/25°/30°/45°/60° |
| Dimmable | YES |
| IP Grade | IP65 |
| Carton Package Dimension | 25*24*29CM/8pcs |
| Carton Package Weight | 8Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Tope Quality Material & Manufacturing Technique
Housing:12# Die-casting grey powder coated aluminum
Gasket:Tooling shaped seal
Step tempered galss:T=4mm
Cable gland:IP68 PG-9 PVC
Reflector:Optical reflector efficiency≥90%
LED:High power LED
PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
Driver:Constant current output
Single color LED=2-circuit output
RGB 3in1 LED=6-circuit output
Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth
Power cable:24V:L=2.0M H05RN-F 2x1.0m²
100/240V:L=2.0M H05RN-F 3x0.75m²
Spike:PVC
Mounting base:12# Die-casting grey powder coated aluminum
Model No. Information
| Model No. | Spec | Voltage | Accessories |
| AL-3AB | 1x2W,single color | DC12/24V,AC120-240V | PVC Spike |
| 1x3W,RGB 3in1 | DC12/24V |
| 1x3W,RGB 3in1 with DMX512 | DC12/24V |
| AL-3AM | 1x2W,single color | DC12/24V,AC120-240V | Aluminum base plate |
| 1x3W,RGB 3in1 | DC12/24V |
| 1x3W,RGB 3in1 with DMX512 | DC12/24V |

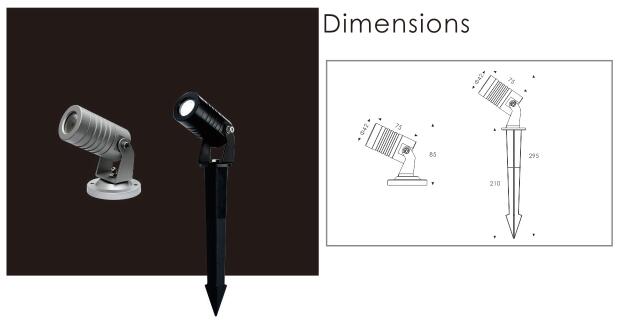

Dimension
Features
- IP65 waterproof,apply to indoor and outdoor commercial light and landscape lighting.
- Die-casting aluminum housing and round base,good heat dissipation & anticorrosive.
- With round base plate and PVC spike,wide and flexible installation ways.
- Color of housing can be customized,let the lamp be harmonious with your project.
- RGB 3in1 color optional,DMX controller optional.
- DC12/24V low voltage safe for people,120V/240V high voltage easy to install.
- Every components and parts use top quality materials.
Packing Details
Spike Type--8pcs/CTN,4.5kg,270x270x415MM
Disk Type--8pcs/CTN,4.5kg,250x250x230MM
Each lamp packed with foam,plastic bag,and paper board in thicken box,and 8pcs packed in one
Super thick CTN.

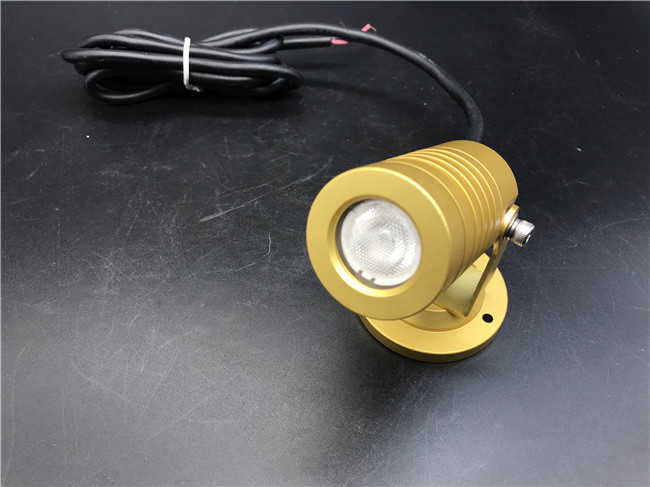

1W 3W Garden Spotlight Photo Show
